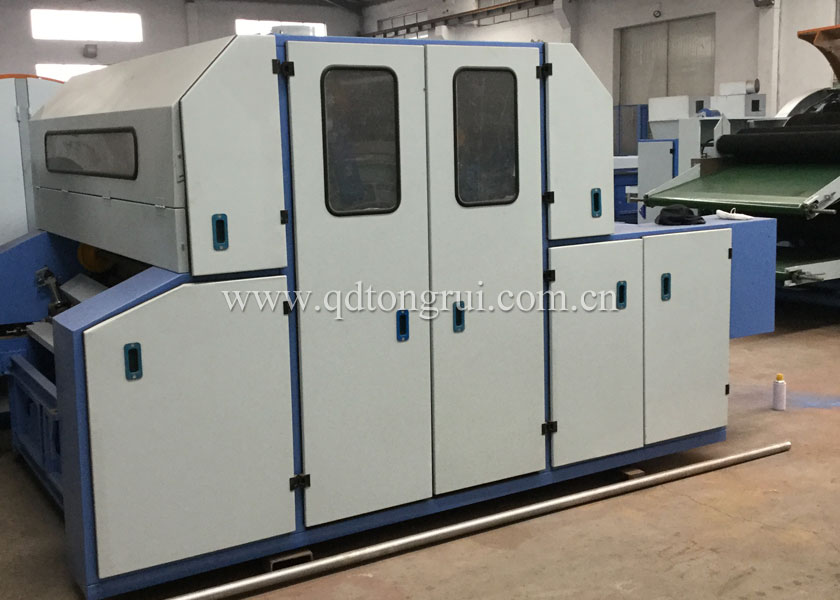

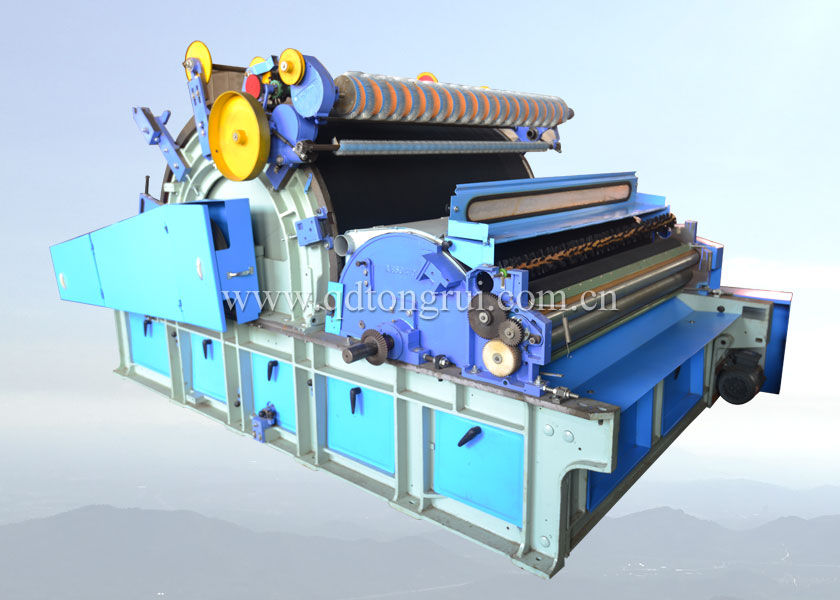

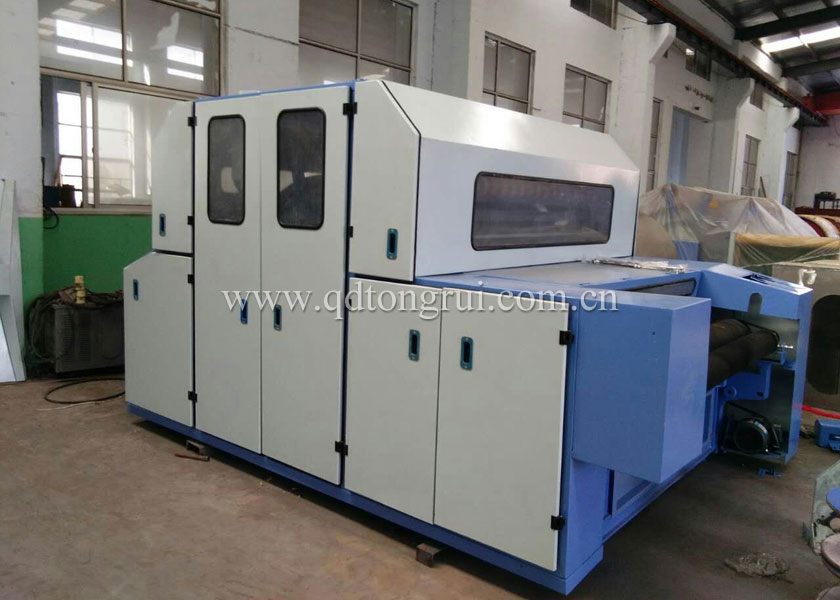

FA204K Carding machine

Main technical parameters:
Suitable range: fiber length 22-76mm pure cotton, chemical fiber and blend
Batt ration (g):3.5-6.5
Specification for lap: maximum diameter 550, width 980mm
Suitable for the output surface of the comb link: 450-1000
Output: up to 50 kg/h
Output speed: 87.3-166.2 m/min
Quantity of cotton layer (g/m):400-800
Working width (mm):1000
Total drafting multiple :67.5-128.5
Working speed (revolution/min) : 930 800
Dov operating speed (RPM)7-64
Cylinder working speed (revolution/min):360 3330 428
Number of cover root (total number of working cover plate/cover plate):41/106
Cover speed (mm/min) :
Cotton: 140.8, 184.4, 240.7, 341.9, 164.3, 214.8, 280.9, 398.9.
Spinning chemical fiber: 90.8, 129.1, 168.8, 220.6, 313.4. Additional carding parts: 1 spindles carding plate, 3 rear fixed cover plate and 3 front fixed cover plate
Applicable to cotton barrel (mm): diameter 600 height 900 1100
Suction: 3,600 cubic meters/h static pressure -49~ 98 pa
Total installed power :5.72 kw
Safety cover: fully enclosed
Floor area (length X width):3523X2096(mm)
Machine net weight: about 4500 kg
Main features:
Unique three roller stripping mechanism
The frequency converter is used to realize the stepless speed regulation of doffer
New front three back three fixed cover plate, high performance cotton net cleaner.
There is a set of comb board under the roller.
New quality metal rack.
The human face interface shows process parameters such as speed and shift output.
