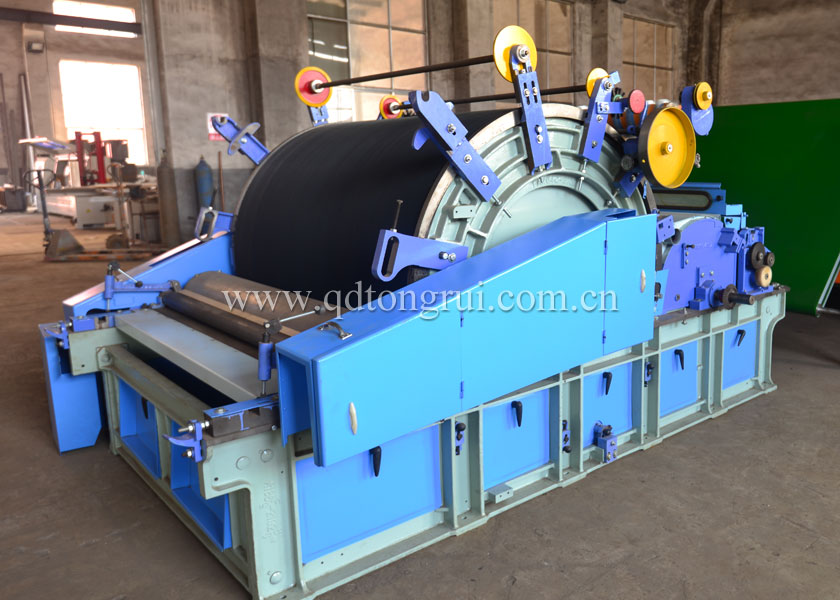

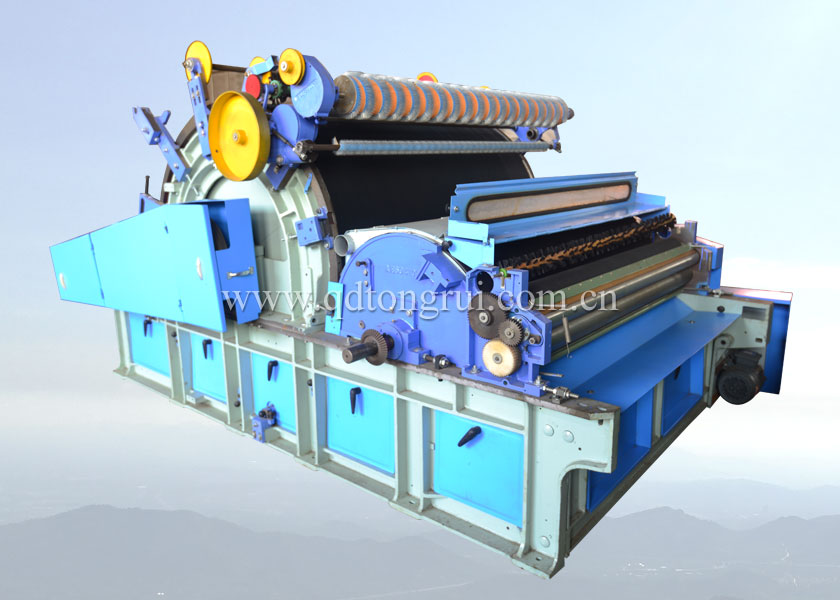

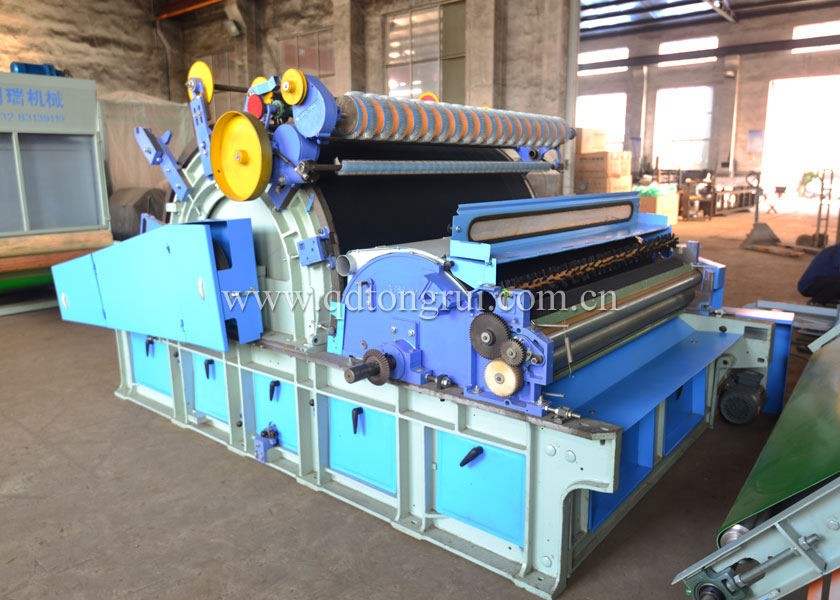

A286F(286G) Carding machine

Machine - right hand (stand in front of the machine facing dov)
Width -1500 mm
Stripping method - three rollers, four rollers of the user's choice
Cylinder work -- ￠1289 mm in diameter
Cylinder speed (optional) --330 RPM, 360 RPM
Doffer work -- ￠707 mm in diameter
Doffer drive - geared drive
Dov speed -- 8-60 RPM
Motor - main motor 5.5KW
Dov motor --1.1kw
Floor area (length x width) -4500 x 2400 mm
Weight -- 5 tons
Production capacity -- 40-70 kg/h
The main advantages
1. The time counter can be used to automatically control the weight of each product. When the desired weight is achieved, dov will automatically change from fast to slow.
The control box is equipped with an imported computer converter, which can change the speed of the driver at will and play a smooth transition between fast and slow transitions. It can also be used with a double-speed motor (optional by the user).
3. The cylinder motor is a special motor for cotton spinning, which saves electricity, is safe and beautiful.
