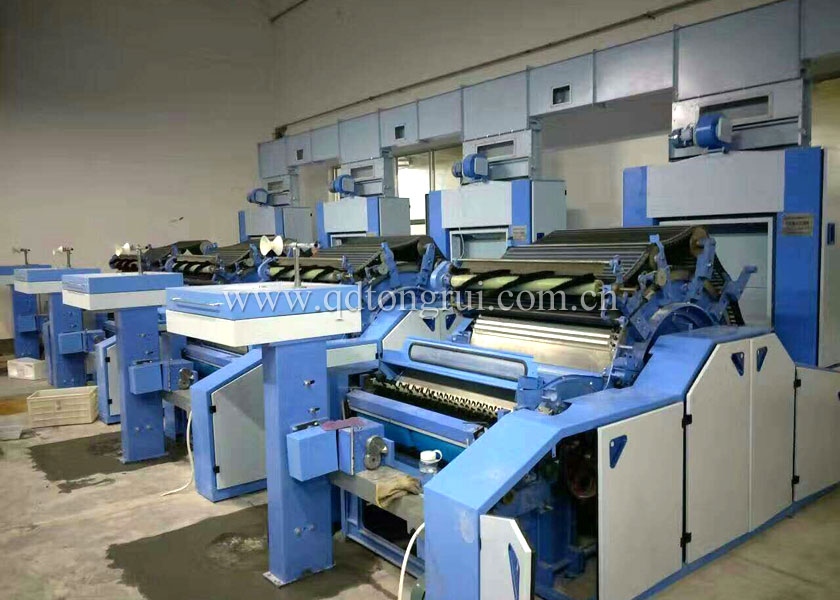

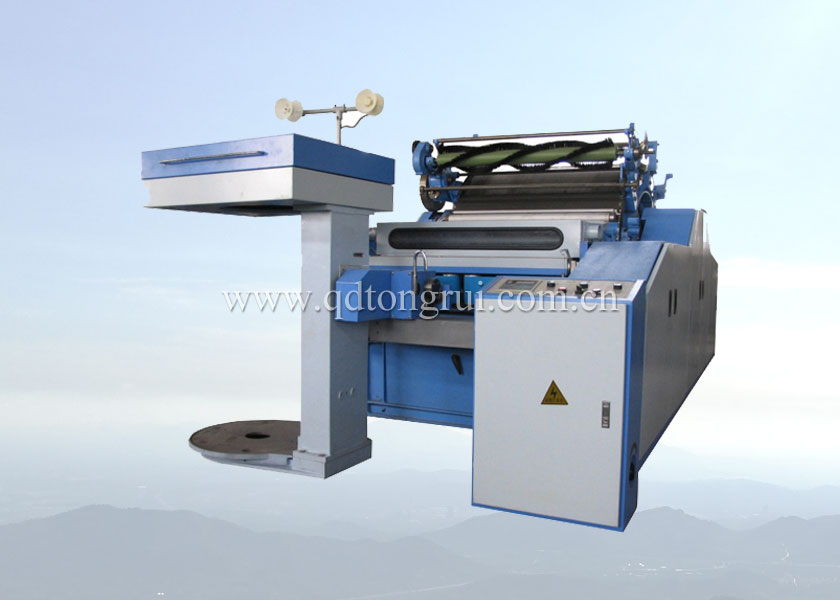

FA186G Carding machine

Main technical parameters
Machine -right hand (stand in front of the machine facing dov)
Width -1020 mm
Applicable to lap size - maximum diameter of 550 mm
Width - 1020 mm
Cylinder work -￠1289 mm in diameter
Cylinder speed (optional)-330 RPM (chemical fiber spinning), 360 RPM (spinning cotton)
Doffer work -￠707 mm in diameter
Dov speed - frequency control
Stretch multiple -67.3 - 120.2
Additional carding parts - burr comb plate, doffer motor 1.1kw
Machine net weight -4.5 tons
Productivity - up to 35 kg/h
Overall dimensions -3809 x 2092mm
Main features:
Microcomputer control testing and digital display related parameters. The front and back fixed cover plate and combing plate are provided with doffer reflux, thick coiling, breaking speed, and so on. Drafting multiple detection, fixed length display.
Cover plate with 0.56 mm small toe, improve fraction efficiency. Doufu motor frequency conversion stepless speed regulation, slow quick start, fast running, using intermittent and continuous suction two forms, for users to choose.
